Running in Docker

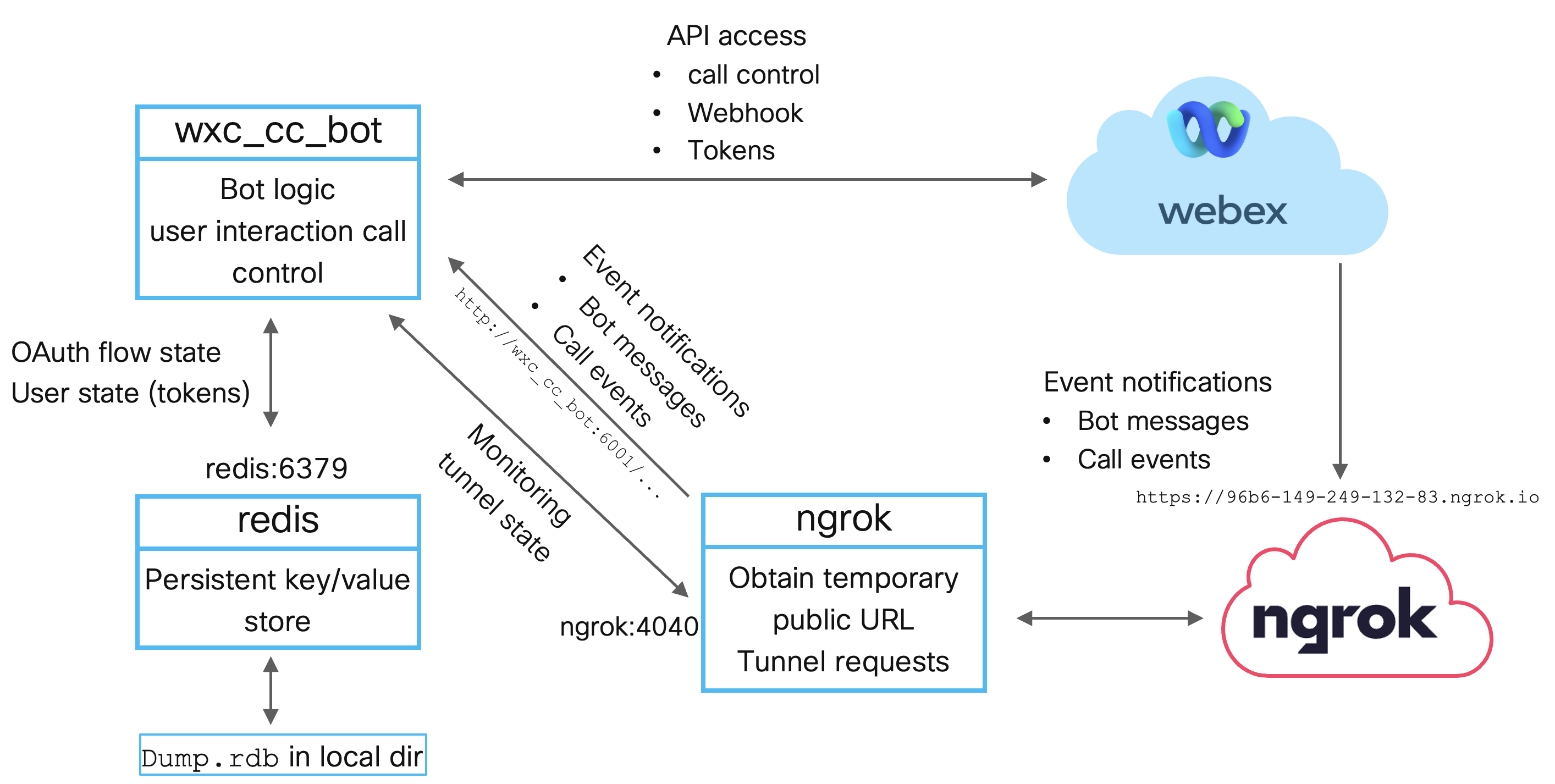

The distribution includes a docker-compose.yml file so that docker-compose up -d --build can be used to build or pull the required images and start all containers. The docker-compose.yml file defines three hosts:

_images/docker.png

  • wxc_cc_bot: the actual bot.

  • ngrok: This container is used to get a temporary public URL that is then redirected to the wx_cc_bot container.

    A public URI is needed so that the bot can set up webhooks to receive event notifications from Webex. This is needed both, to get notifications about new messages sent to the bot and call events.

  • redis: The bot uses Redis to store state information for active authentication flows and user token information.

    When starting the containers the current directory is mapped to the /data directory within the Redis container so that Redis state can be persisted in dump.rdb on the local host.

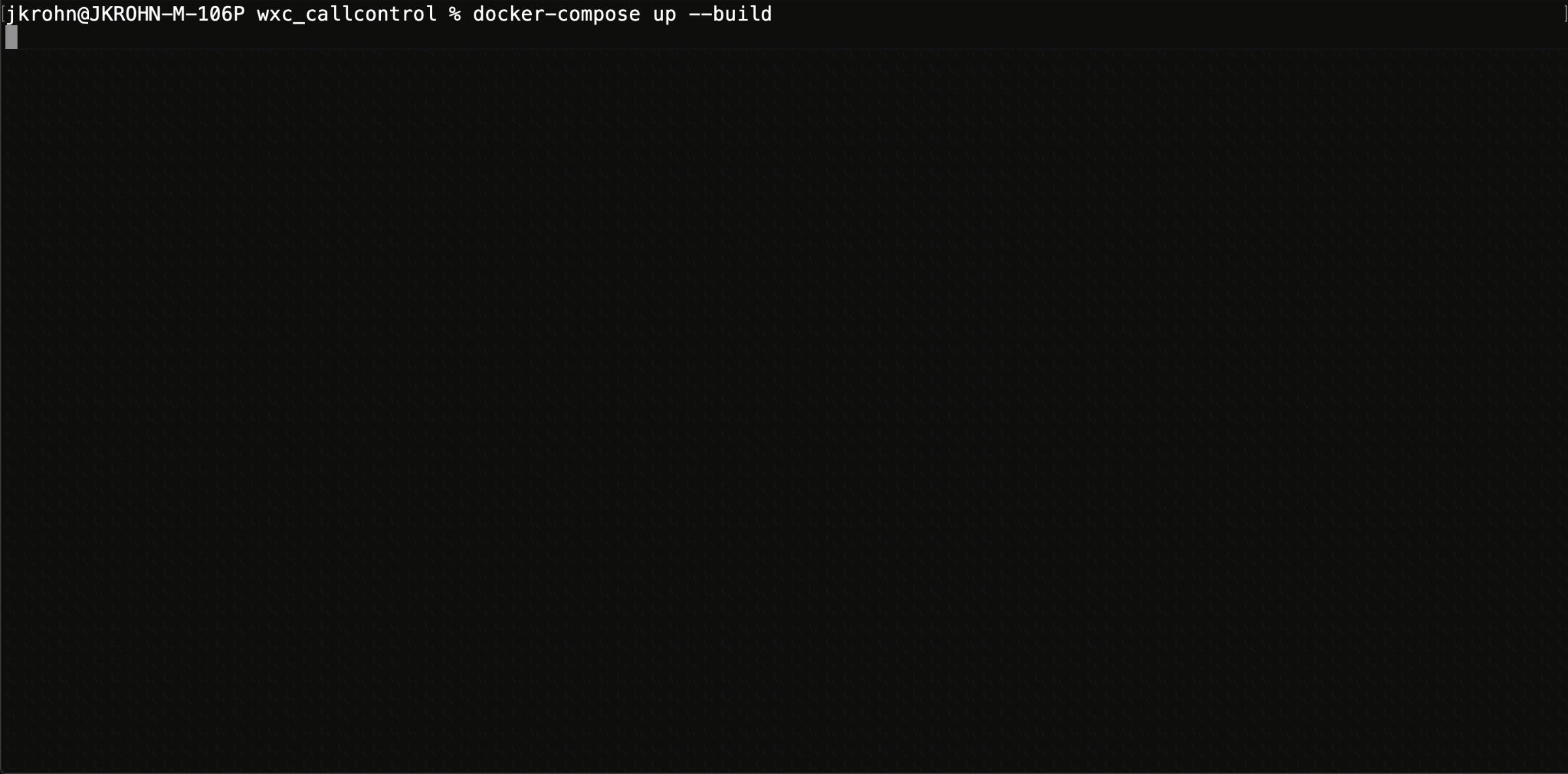

The animation below shows the output of docker-compose-up:

_images/docker-compose.gif
